Spare parts

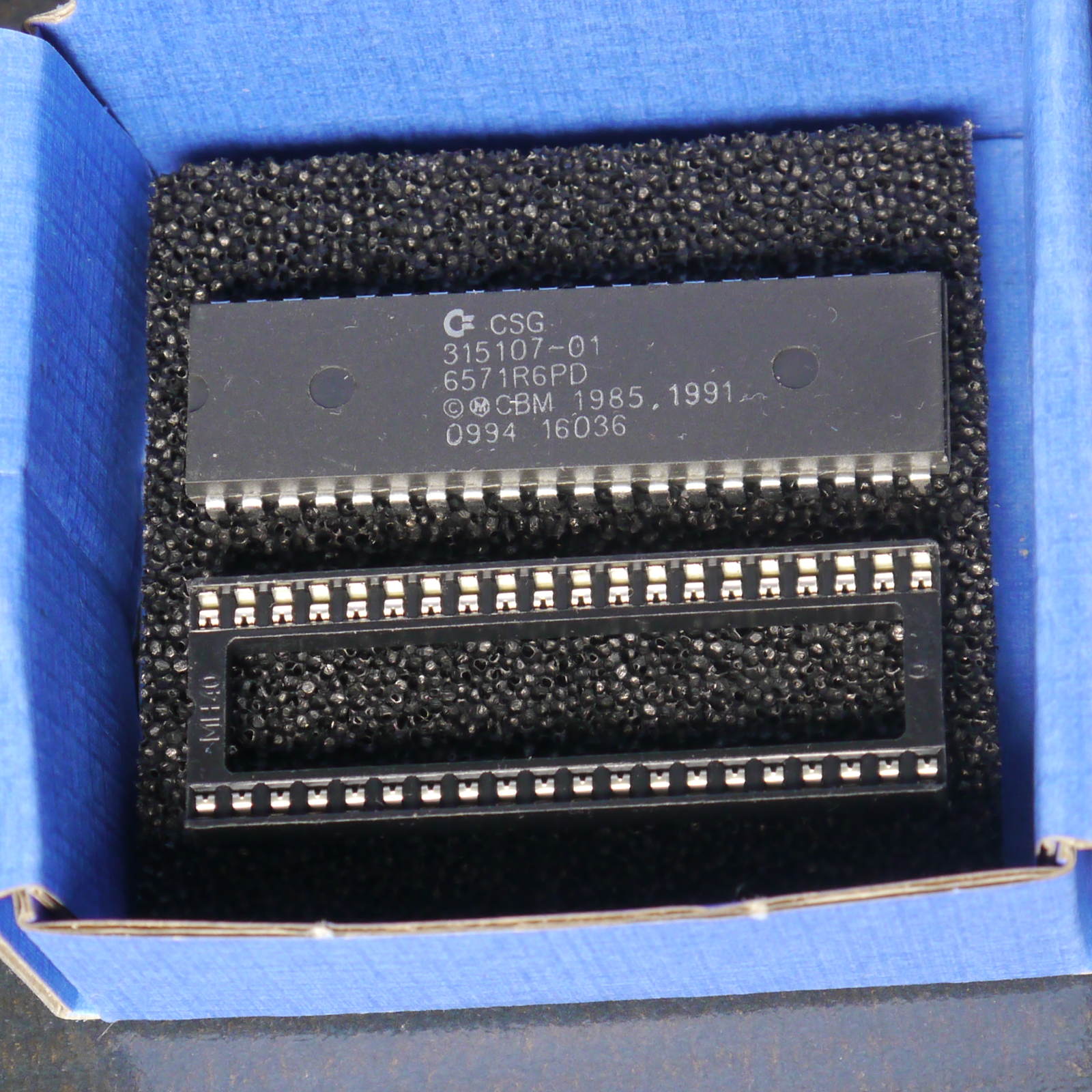

6571R6PD
This is a new old stock component, original Commodore spare part number 315107-01. Datecodes may vary. The part is also known as 6571-036 and it is compatible with Commodore part number 328191-02 or part number 6570-036. While the 6571 controller chip was only used in some A4000 keyboards and the CD1221 keyboard (for CDTV), the pinout and internal programming of the chip is identical to the chip that has been used in A500/A2000/A3000 keyboards. This chip is NOT compatible with the 6570-033 keyboard controller of the A1000 keyboard, and it is also not compatible with the 8049 controllers used on the German A2000a computers ("Braunschweig models", originally made by Cherry). Exchanging the keyboard controller chip is a technician's job. You should only buy this chip if you have some experience exchanging chips in your Amiga that are soldered (not in a socket). Delivery in anti-static packing. This set includes the keyboard controller chip and a socket. In case of a revocation, you only need to send back the controller chip in it's antistatic packing. We want to encourage everyone to salvage and repair Amiga keyboards, but we don't want unused spare parts to just sit on a shelve looking pretty. Limited availability - please mind the maximum quantity of one per customer.
A4000 chipset
This set consists of chips for your A4000 build, including: Alice (1 pc.) Paula (1 pc.) Lisa (1 pc.) Bridgette (1 pc.) Fat Gary (1 pc.) Ramsey (1 pc.) If you are building an A4000T, we also recommend to add the Symbios SCSI chip to your shopping cart. All chips of this set are NOS (new old stock) and will be delivered in individual anti-static packing boxes as pictured. Picture shows multiple Bridgette chips on a tray. The set only contains a single Bridgette chip, regardless of what the picture shows.

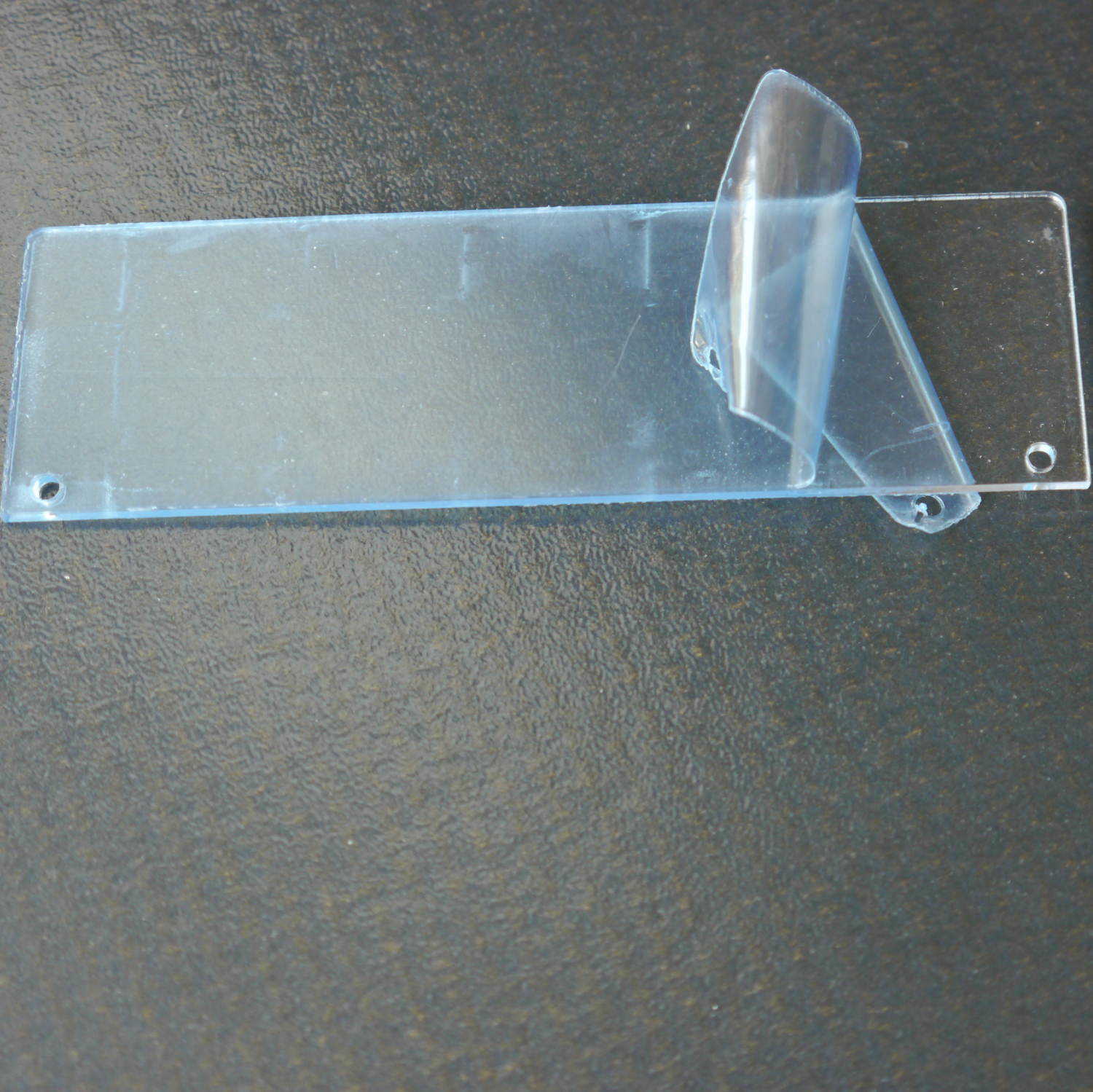

ACA500 plexi panel
Laser-cut plexi glass panel for ACA500 or ACA500plus. Please choose the correct variant before ordering!

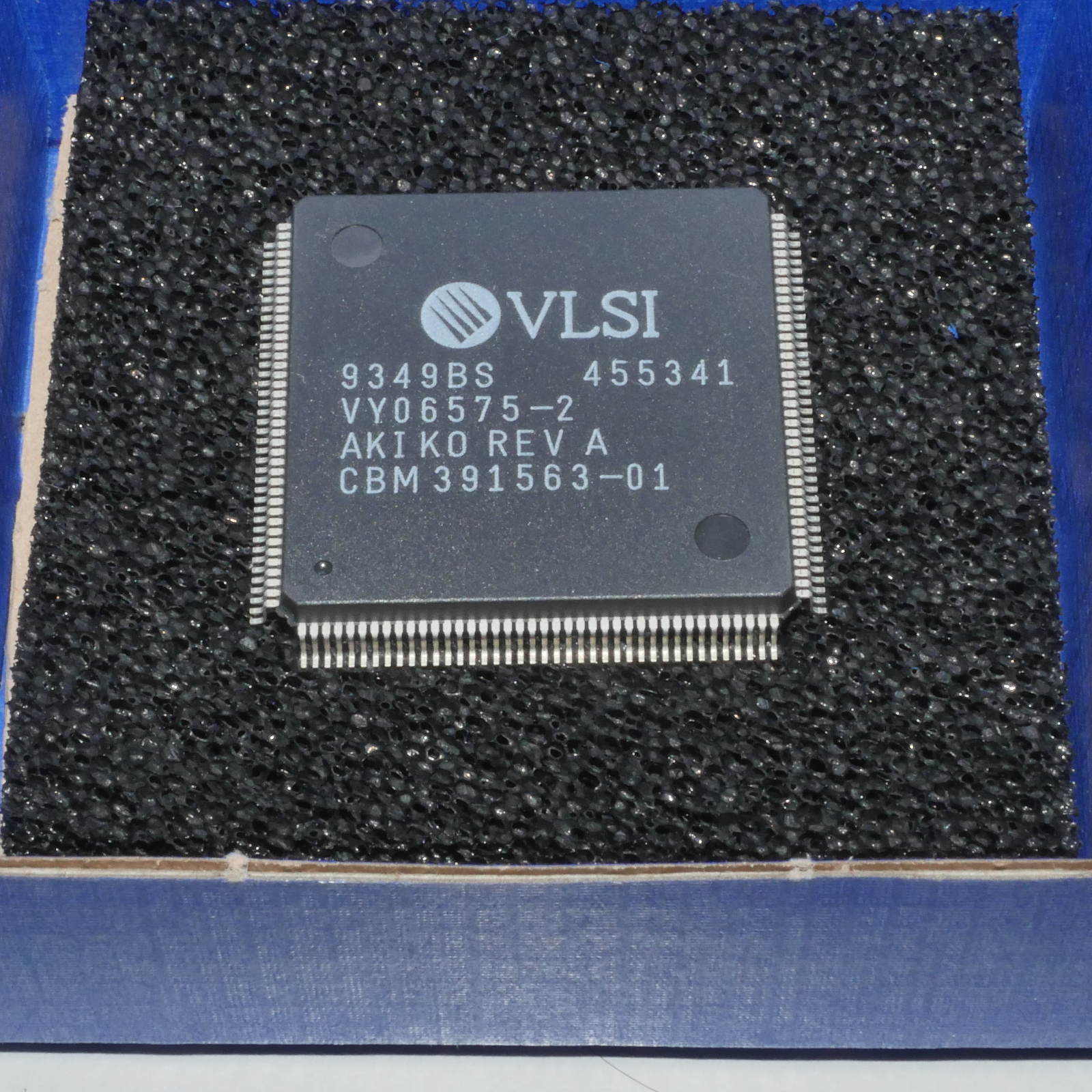

Akiko 391563-01 NOS
This is a new old stock component, original Commodore spare part number 391563-01. The Akiko chip f the CD32 replaces multiple glue logic chips, contains part of the CD controller and also does the C2P conversion that's used by a few games. Exchanging the Akiko chip of the CD32 is a technician's job. You should only buy this chip if you have vast experience exchanging SMD chips in your Amiga. Delivery in anti-static packing.

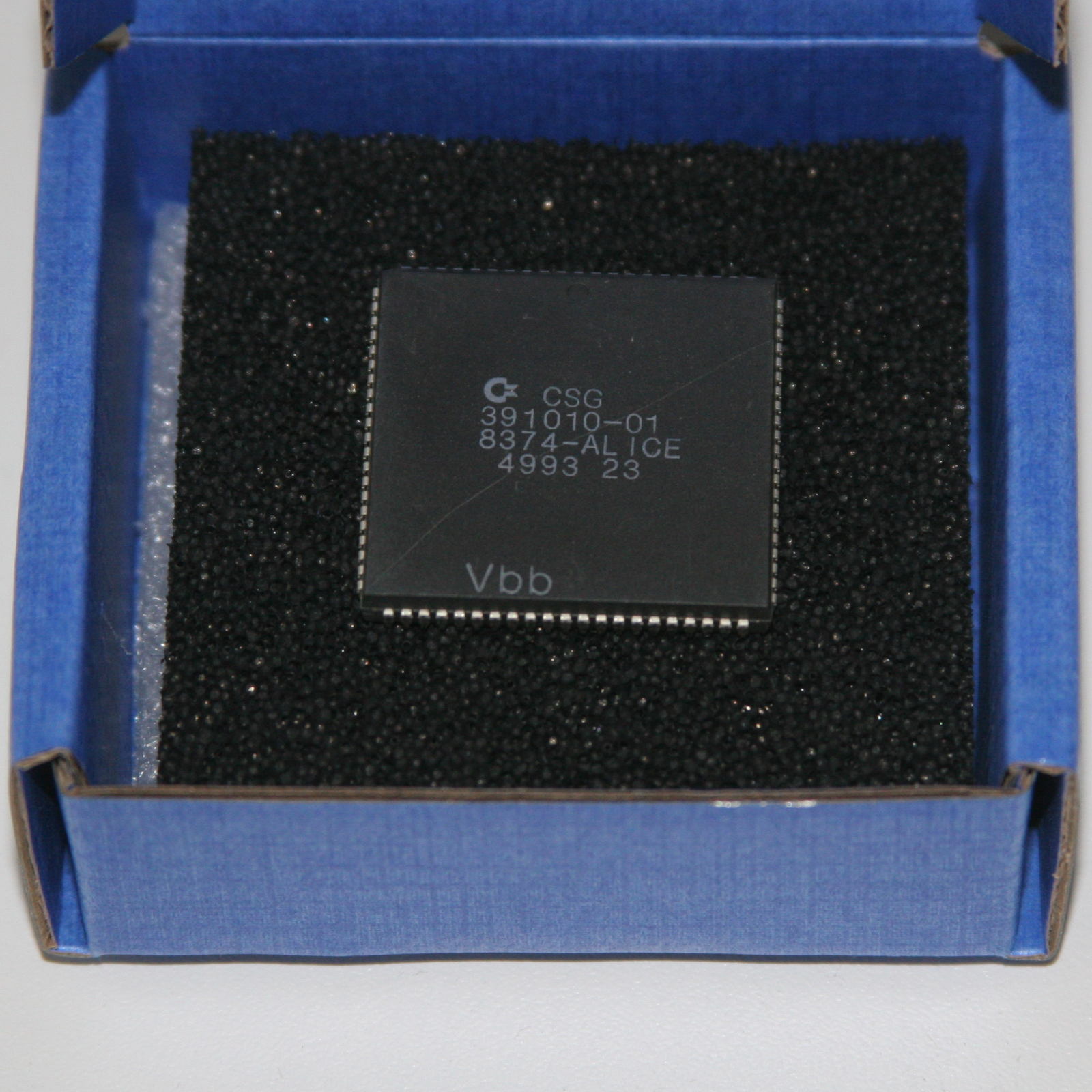

Alice 8374
NOS (new old stock) Chip from Commodore/CSG. Original Commodore part number: CSG-391010-01. Sale only in exchange for an old Alice chip. Login required - your return will be saved in your user account.

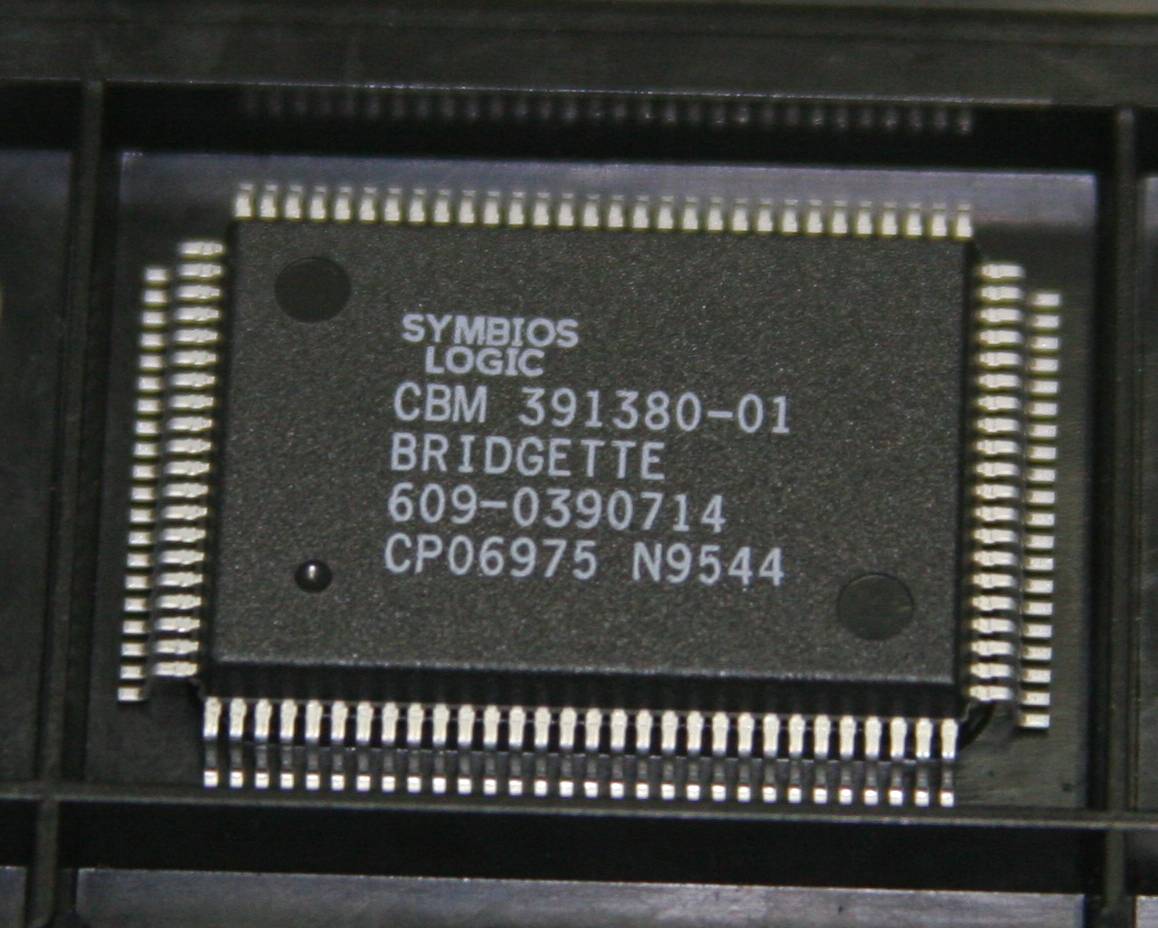

Bridgette 391380-01 NOS
Bridgette (Part no. 391380-01) is an integrated bus buffer that is used in the A4000 and A4000T. It connects the chip, CPU and I/O buses and replaces six 74F646s and four 74F245s chips used in the original A3000 design. The chips we are providing are NOS ("New Old Stock", i.e. unused and no pulls), date code 44/1995. Delivered in anti-static box.

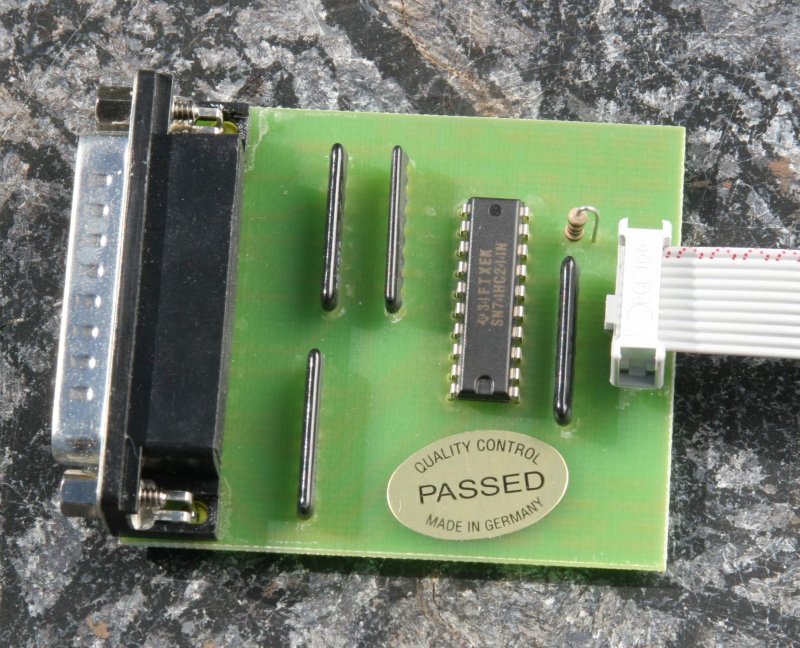

ByteBlaster MV
CPLDs and FPGAs - both programmable logic devices - are essential for many hobbyist projects. Back when the idea of programmable logic chips came up, these devices required expensive and hard-to-find equipment that allows programming the functionality into these chips. Today, the equipment became so simple that you can almost build it yourself. Altera even provides the schematics of the download cable for free on their website. With our version of the ByteBlasterMV, you can program Altera CPLDs and FPGAs in your own circuit or on the 8 Bit Baby experimenting board with a PC, a parallel cable and Altera's Quartus(*) software. The ByteBlasterMV takes it's power from the target circuit and will automatically adapt to the target voltage of 5V or 3.3V. No further fiddling with external power supplies or special jumper settings! Our product is 100% compatible with Altera's ByteBlasterMV and includes the 10 pin JTAG programming cable. Programs Altera CPLD and FPGA devices through the PC parallel port. 100% compatible with Altera's ByteBlasterMV and software. compatibility includes popular MAX3000 CPLD and Cyclone FPGA series automatic voltage selection extremely small form factor of only 55mm by 65mm. ByteBlasterMV requires a local parallel port on the computer: Either on the mainboard, or on a PCMCIA card. It does not work with USB-to-Parallel adapters. (*) ByteBlasterMV and Quartus are trademarks of Altera Corporation, now Intel.
CDTV Remote Control
This is the original CDTV remote control by Commodore, second version. The Commodore part number is 252594-02. The difference to the first version is that the switch between mouse and joystick is a sliding switch instead of rubber buttons. While this remote is perfectly usable for it's original purpose - controlling the Amiga CDTV - it's probably even more popular purpose is controlling the Chameleon, thus serving as a wireless game controller. Thanks to it's 40kHz transmission standard, the CDTV remote control has outstanding reach and it is remarkably insensitive to the direction that you're pointing the remote to: Even if you point the remote to a white wall at the opposite side of the room, the Chameleon will safely catch the buttons that you're pressing. A direct line of sight to the receiver does help, but it's not always required: There is no need to point the remote control exactly into the direction of the Chameleon, like you may know it from TV remote controls. You will need two AA cells to operate this remote control. Sale of this item is bound to purchase of a Chameleon V2, or to existing customers of the Chameleon (please log in, so previous orders will be considered).

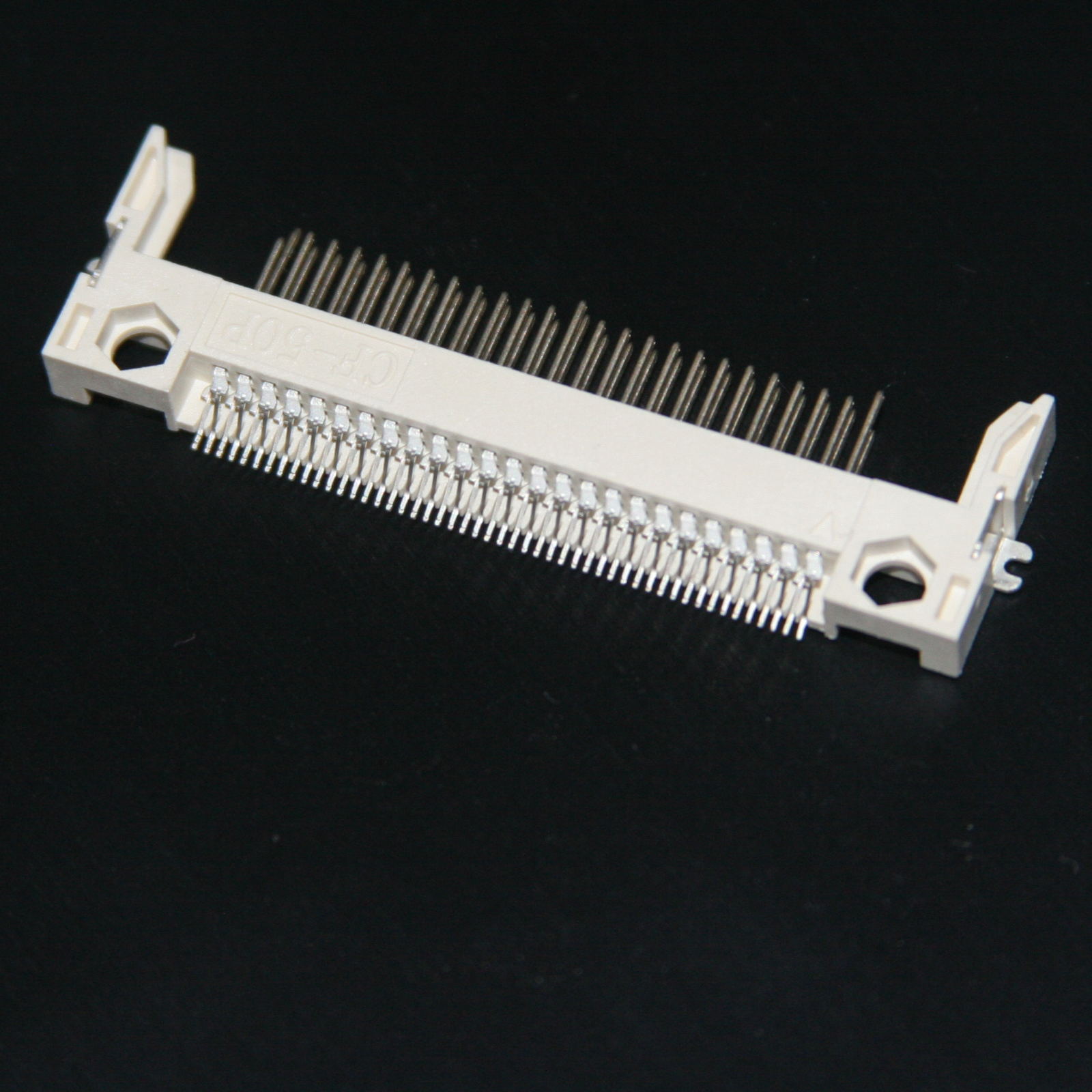

CF card slot
This is the CF card slot that is used on our ACA500 and ACA500plus products. Exchanging the CF card slot is a job for an experienced technician. You will need high-quality hot-air SMD tools for removing the old CF card slot.

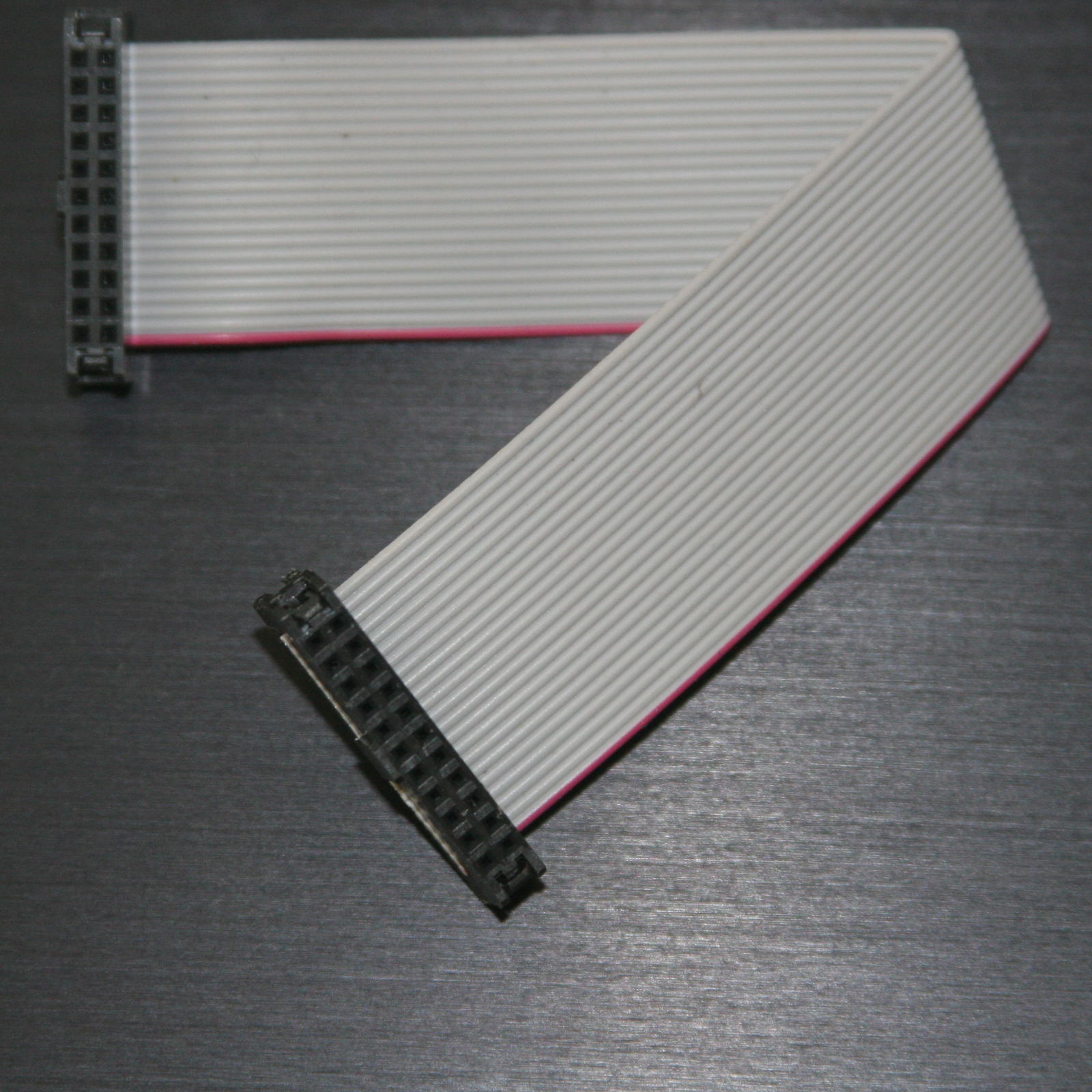

Clock port cable
This cable can be used to connect products like RapidRoad, Silversurfer Limited Edition, Delfina or other products that require a cable for the clock port. Length: 125mm between the connectors. Please note that this cable cannot be used to upgrade an X-Surf-100 version of RapidRoad to a "clock port version".
CSG 8580 SID
This SID chip is a new-old-stock unit, date code 50/1992. Delivery in antistatic box. We reserve the right to cancel excessive orders before shipment; Quantity is limited to two units per year and household. These chips are meant to be used in Commodore computers only. If we know that your application is outside the Commodore domain or for re-sale, we'll refund any paid money and cancel your order.

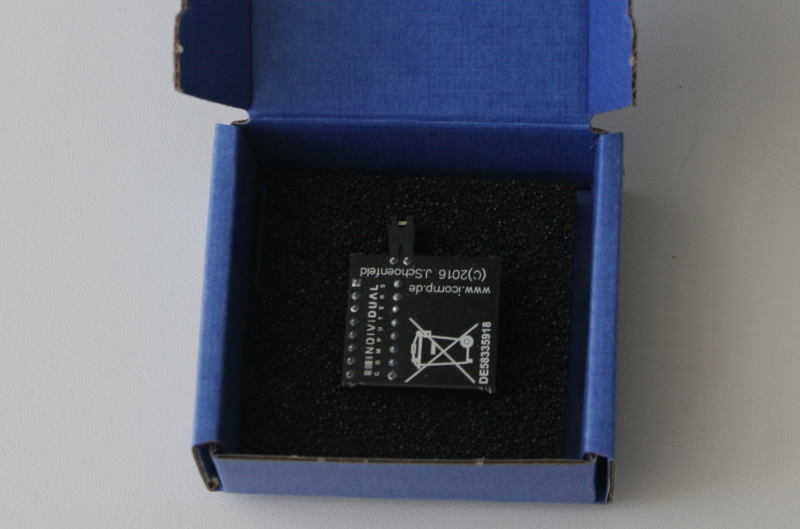

CSG8701-replacement
The CSG8701 (previously called MOS8701) is a custom timing generator chip for C64 and C128 computers. Our replacement board does not only contain a replica of the original PLL circuit, but also the crystal. While the original chip took it's PAL/NTSC setting from the jumper wire on the C64 main board, there are three different versions of our replica board: A PAL and an NTSC version, and a new PAL/NTSC switchable version. The advantage of putting everything on one board is that you can use it for repair jobs without having to check the original crystal. Further, a PAL/NTSC modding job gets significantly easier, because no need to solder at all. For detailed specifications and related downloads please look at our wiki.

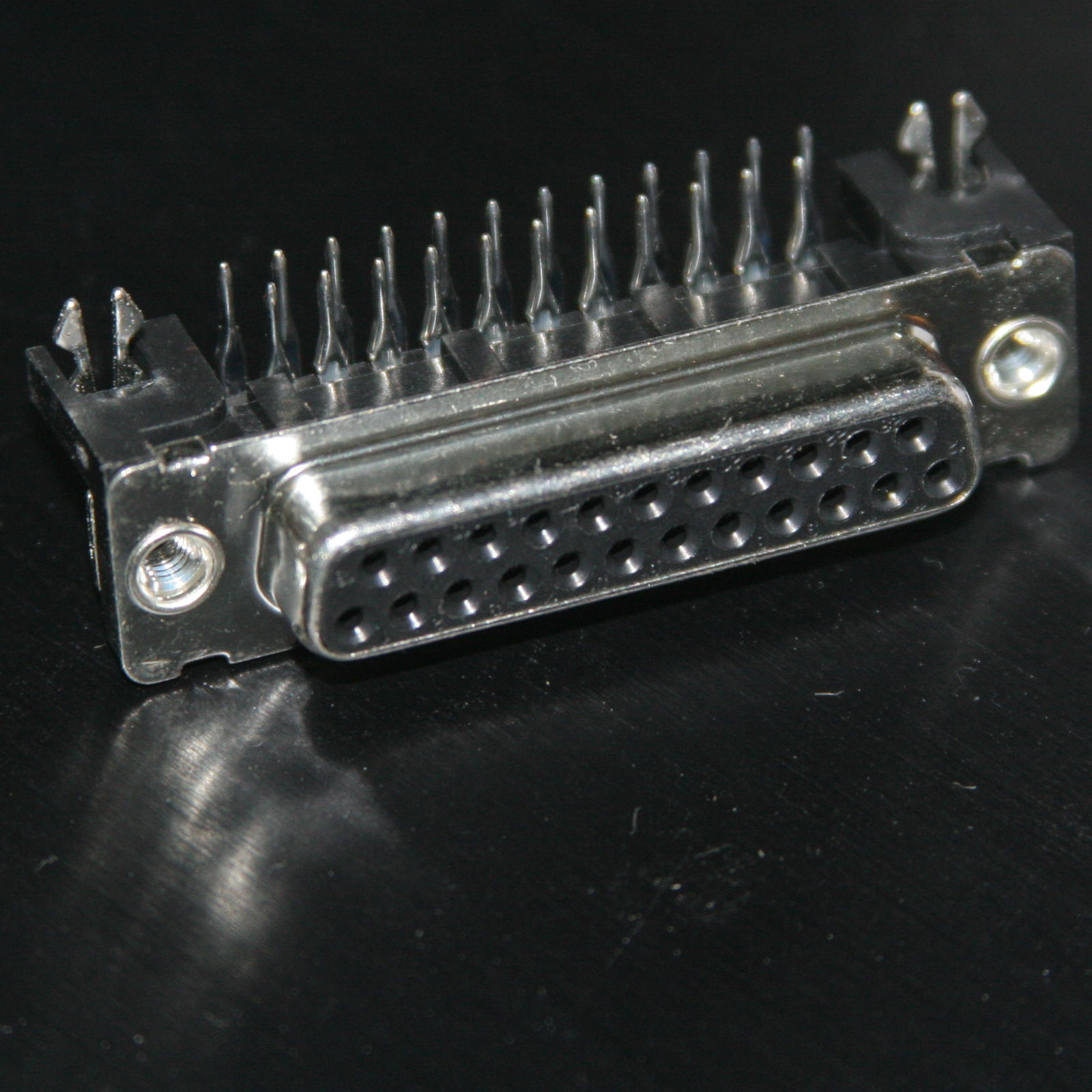

DB23-female connector
This is a new component made by iComp, compatible with original Commodore spare part number 390241-03 or 327033-03, originally made by Foxconn. This version of the connector has the metal shroud riveted to the base, so it will hold without bolts inserted. Delivery including bolts. This part is fully RoHS compliant. Please note that we're selling these parts at a loss, so we are limiting them to one set (male/female) per year and household. We reserve the right to cancel and refund your order, minus possible banking fees.

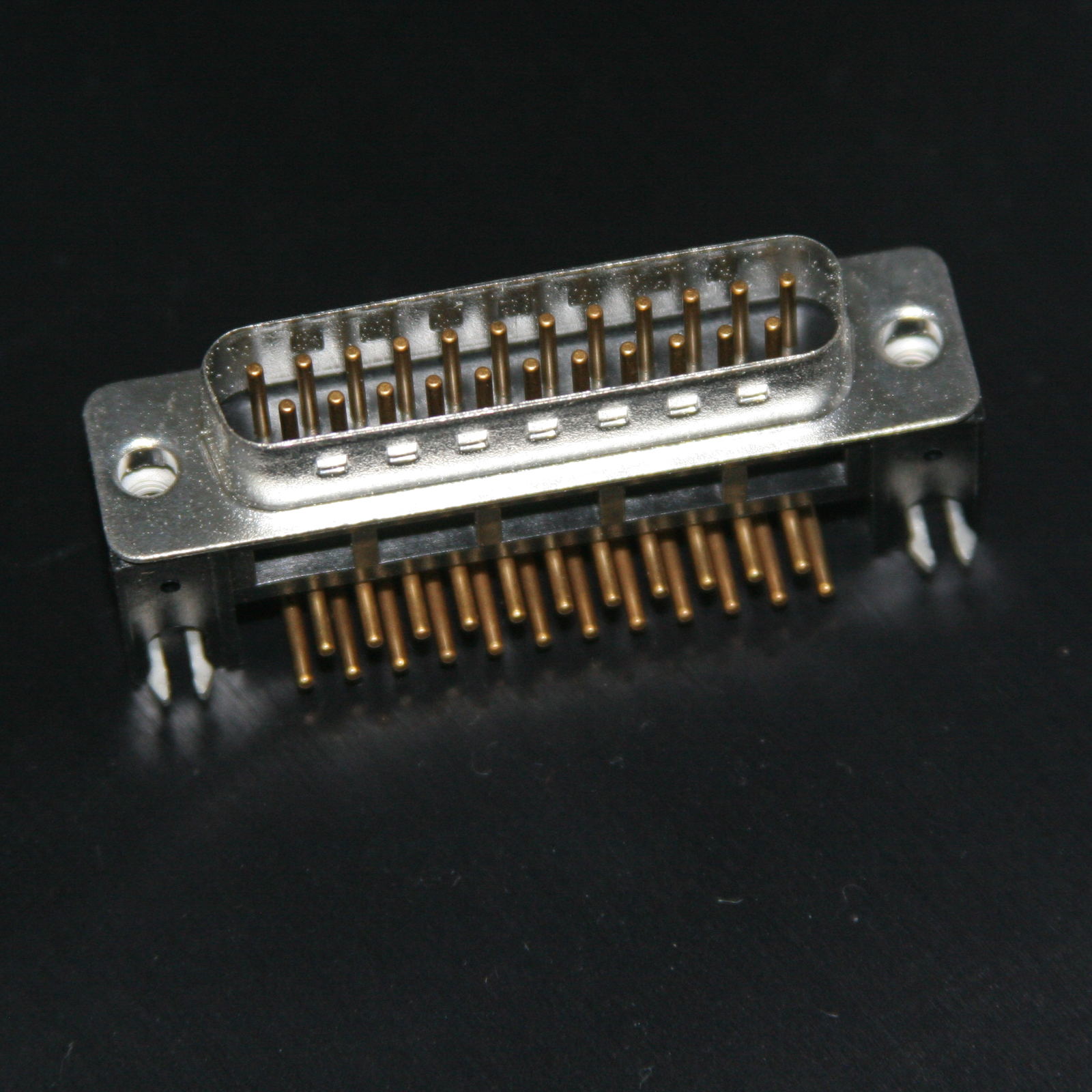

DB23-male connector
This is a new component made by iComp, equivalent to Commodore spare part number 390242-03 or 327032-03. This version of the connector has a riveted metal shroud that will also stay in place when the bolts are not in place. Delivery including bolts. This part is fully RoHS compliant. Please note that we're selling these parts at a loss, so we are limiting them to one set (male/female) per year and household. We reserve the right to cancel and refund your order, minus possible banking fees.

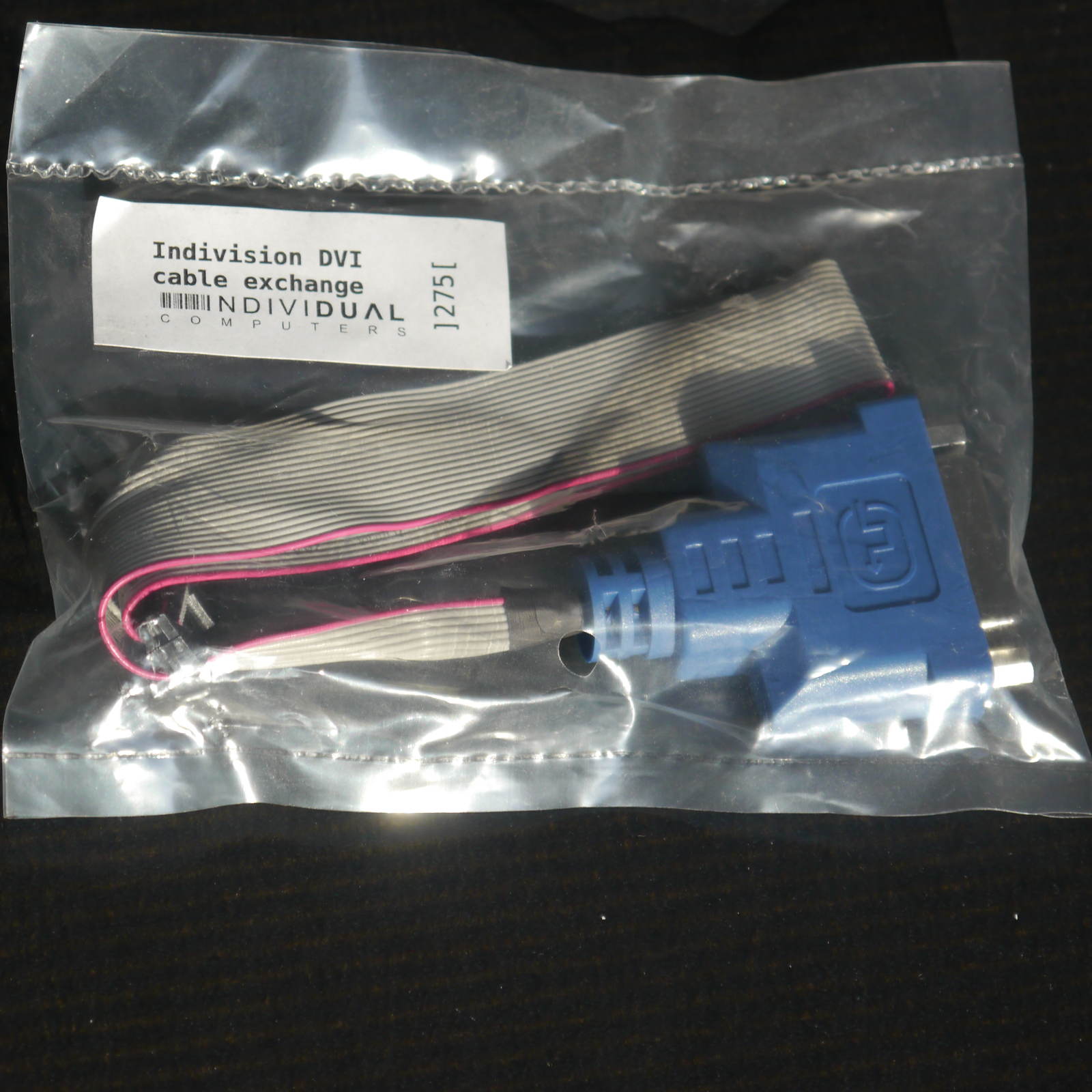

DVI-I cable
This cable is for use with Indivision AGA MK2cr (not Indivision AGA MK2!). Cable length 340mm from connector-end to connector-end. Usable cable length 290mm. New production run of 2020 due to popular demand of a vivid 2nd-hand market for Indivision AGA MK2cr flicker fixers.

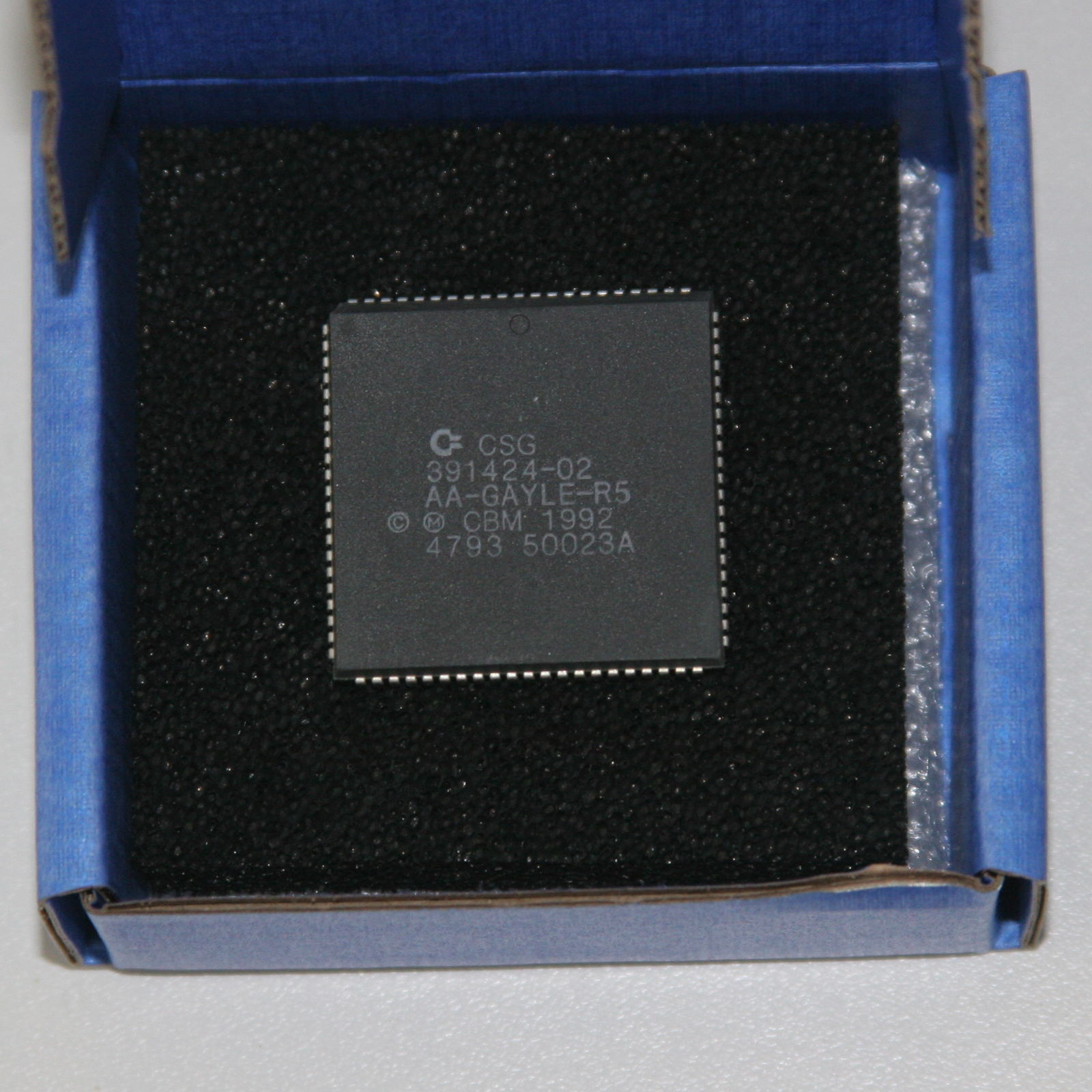

Gayle A1200 NOS
This is a new old stock component, original Commodore spare part number 391424-02. Please note that this chip is only suitable for A1200 computers. It does not work in A600 computers. Exchanging the Gayle chip is a technician's job. You should only buy this chip if you have some experience exchanging chips in your Amiga. Delivery in anti-static packing.

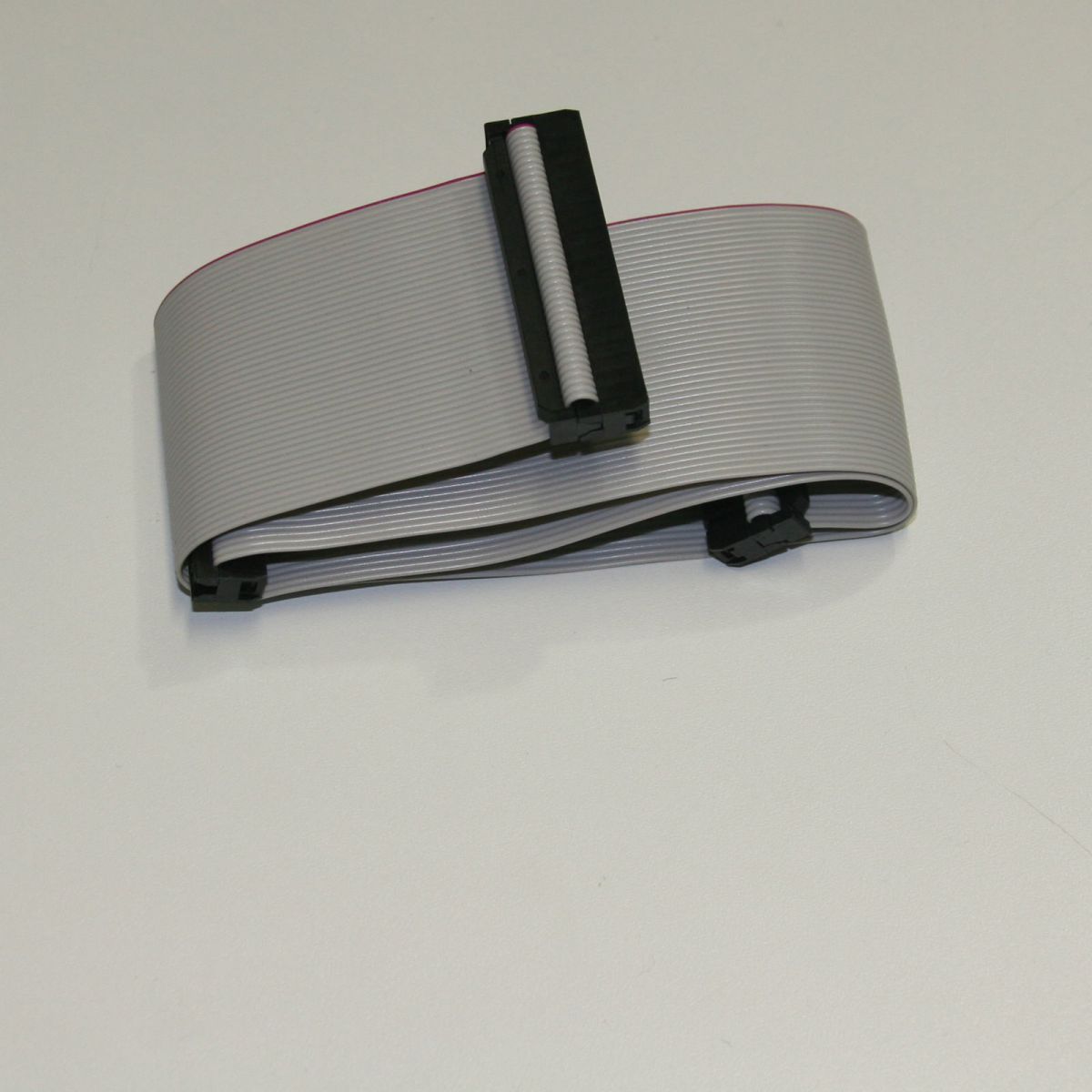

IDE-cable
40-pin IDE cable (non-UDMA) with two connectors for one master- and one slave device. Length: 50cm (19.6").
Minimig-Cable for Chameleon-Dockingstation
This cable can be used to connect the chameleon docking station to the minimig board. Compatible with both versions of the Docking Station. Includes black cable-tie. For installation instructions look at our WIKI

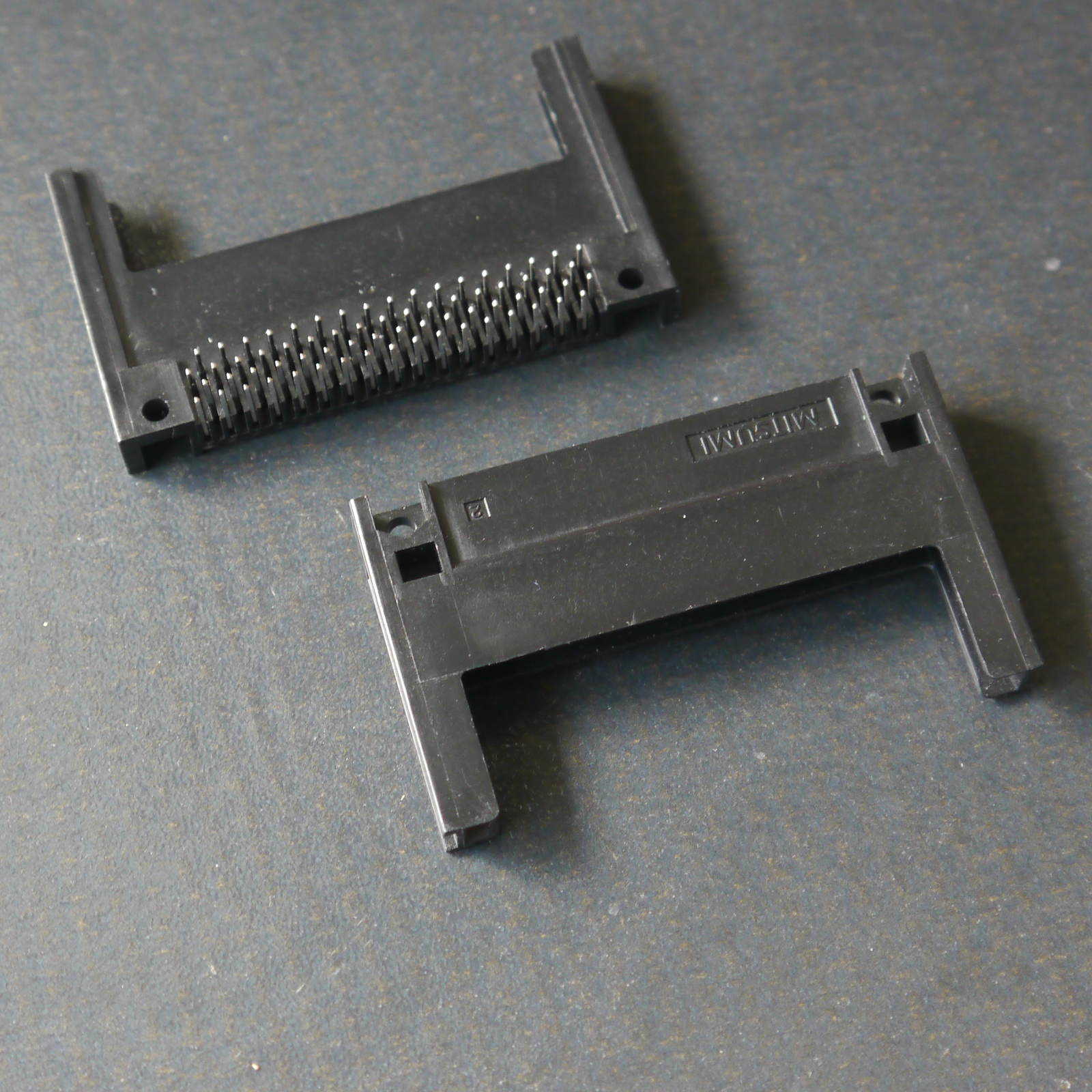

PCMCIA slot A1200/A600
This is a new old stock component, original Commodore spare part number 391073-01, Misumi-branded. Exchanging the PCMCIA port is a technician's job. You should only buy this connector if you have lots of soldering experience. Delivery on protective foam. Price for one piece only! Picture shows two units from two different angles for display purpose only.

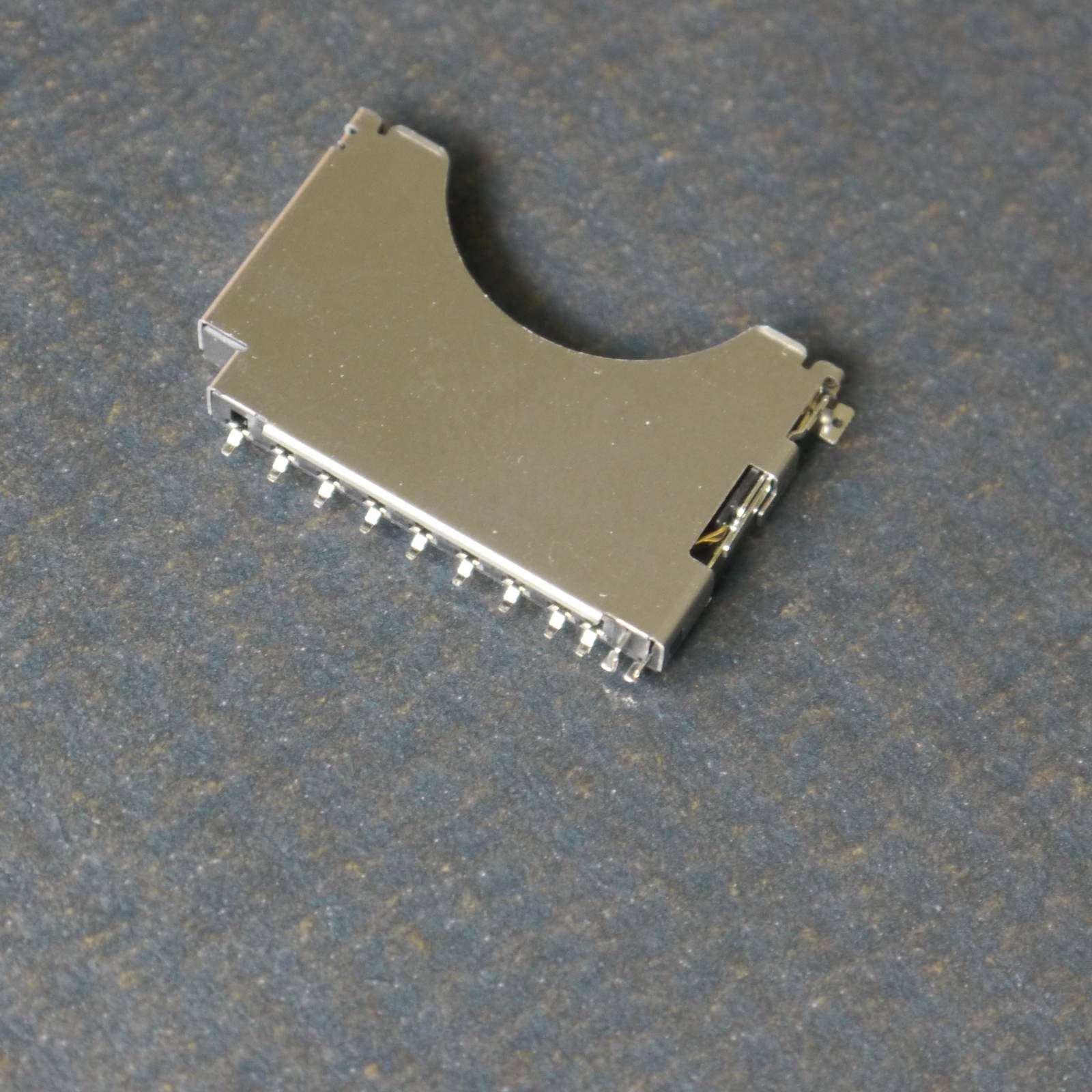

SD-card slot
High quality original spare parts for MMC64, MMC Replay, Chameleon V1 and Chameleon V2. Please choose the correct variant before ordering!

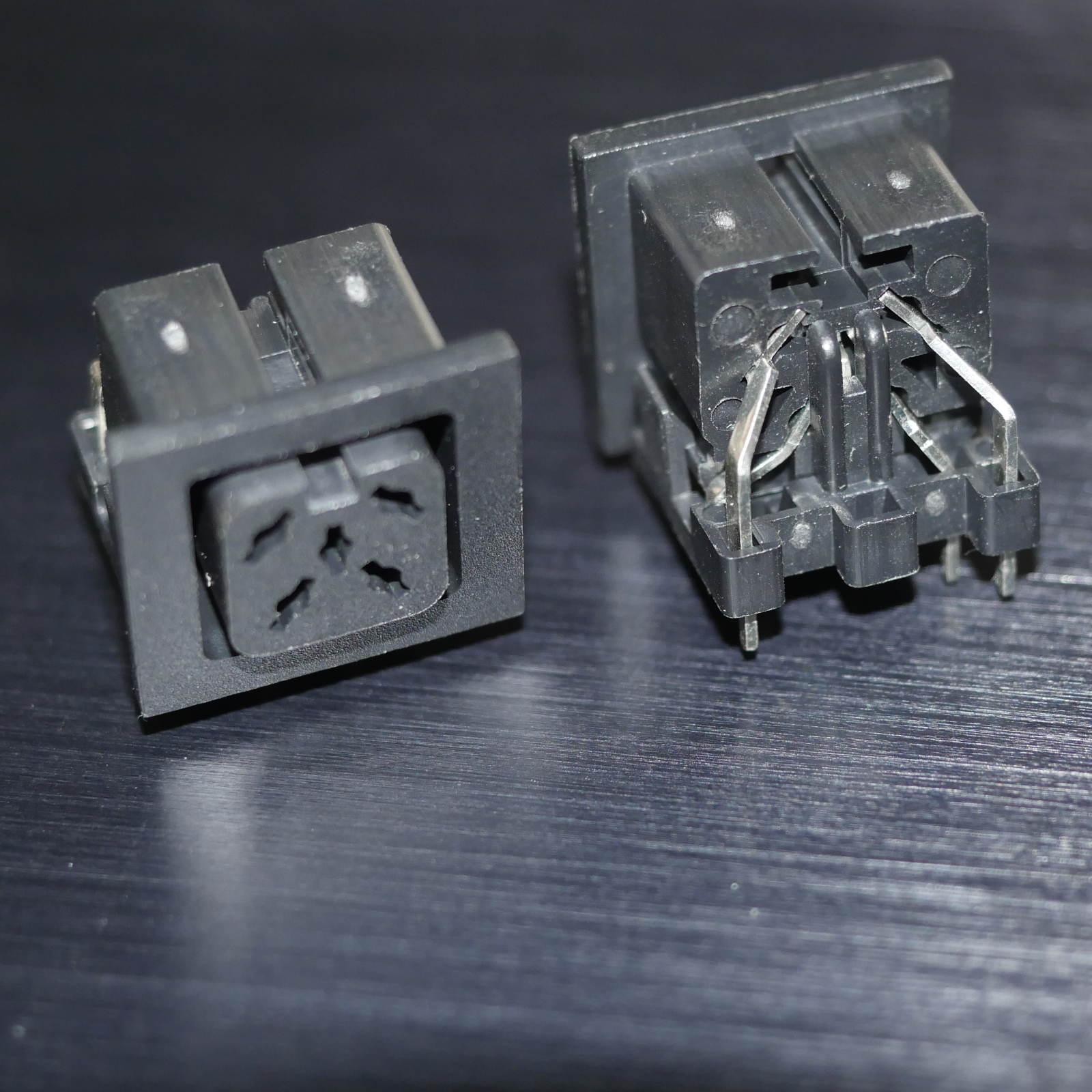

Square DIN-5 Power connector
This is a new component, original Commodore spare part number 252167-01, sometimes referred to as DS-215. It fits the A500, A600 and A1200 main boards, and also the new versions of these boards that are currently being sold. This part was also used on the C128 computer. Please note that this part differs in one detail from the original: There is no extra metal shield, as can be seen on the pictures. This part is RoHS compliant and may be used for repairs or new, commercial equipment distributed in Europe. Price is for one unit only; pictures show two units for showing more angles. Sales are coupled to CA-PSU: You can only buy a unit if you're buying a CA-PSU in the same order, or you have a CA-PSU in your order history.

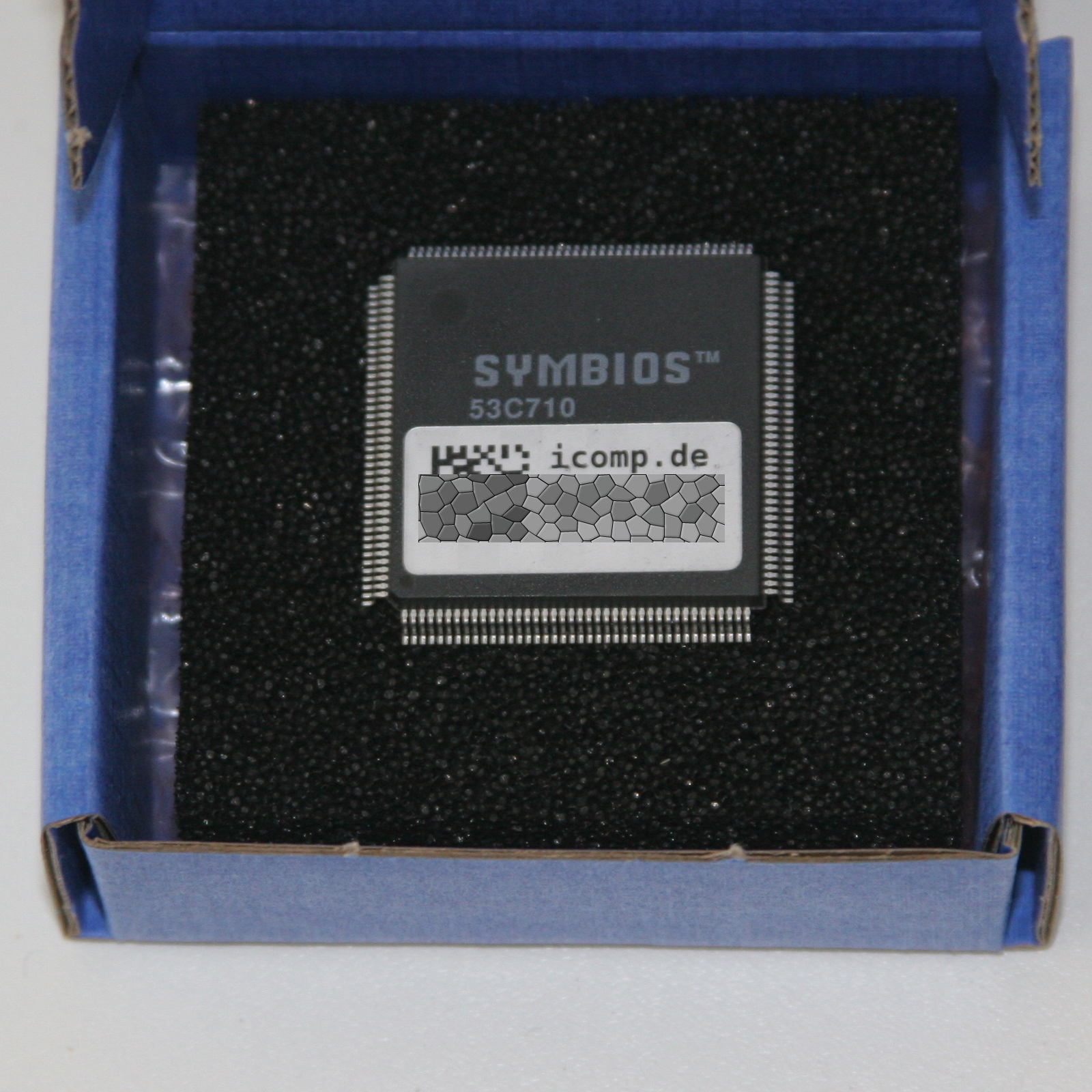

Symbios SCSI chip
This is a new old stock component as used on A4000T mother boards and 2nd-source SCSI controllers. Exchanging the SCSI chip is a technician's job. You should only buy this chip if you have some experience exchanging chips in your Amiga. Delivery in anti-static packing.
